مكان المنشأ:
الصين
اسم العلامة التجارية:
Kelong
إصدار الشهادات:
ISO9001 / IRIS
رقم الموديل:
KL29
Contact Us
• الرافعات
• آلات صناعة القوالب بالحقن
• أسطوانات الصحافة الهيدروليكية
• الشاحنات
• آلات البناء
• أسطوانات الخدمة
• أجهزة الكسر الهيدروليكية
• توربينات الرياح
• صناعة السيارات

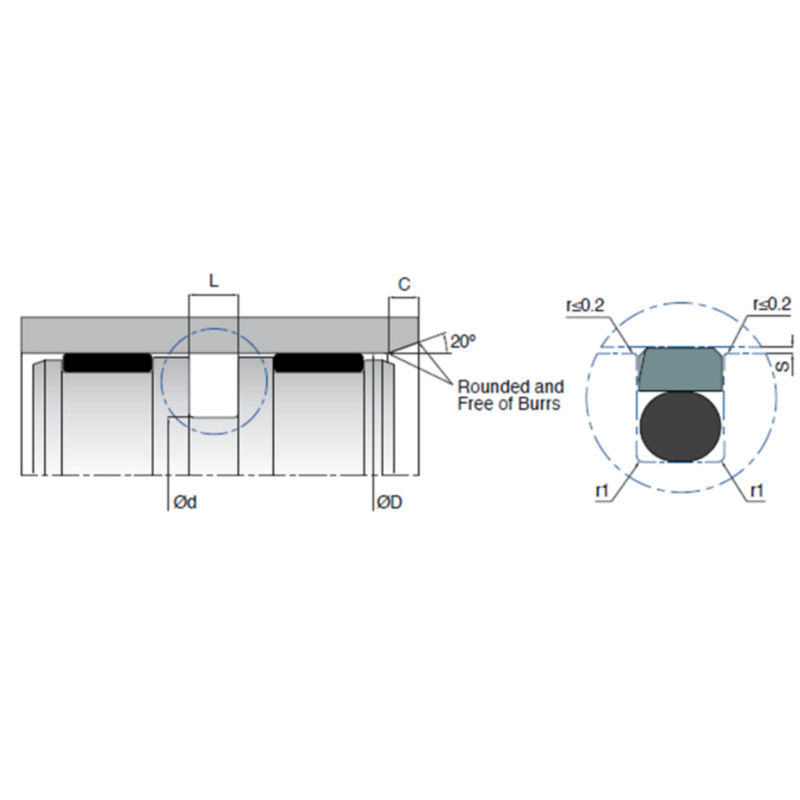

| D (H8) | d (h9) | L (+0.2/-0) | r1 | ج | حلقة O | المواد | |
| (كل29 008-003)1 | 8 | 3.1 | 2.2 | 0.4 | 3 | 2.90×1.78 | PTFE |
| (كيل29 010-005)1 | 10 | 5.1 | 2.2 | 0.4 | 3 | 4.76×178 | PTFE |
| (كل29 012-007)1 | 12 | 7.1 | 2.2 | 0.4 | 3 | 6.75×1.78 | PTFE |
| (كل29 014-009)1 | 14 | 9.1 | 2.2 | 0.4 | 3 | 8.73×1.78 | PTFE |
| (كل29 015-007)5 | 15 | 7.5 | 3.2 | 0.6 | 4.5 | 7.60×2.62 | PTFE |
| KL29 016-008.5 | 16 | 8.5 | 3.2 | 0.6 | 4.5 | 7.60×2.62 | PTFE |
| (كيل29 018-010)5 | 18 | 10.5 | 3.2 | 0.6 | 4.5 | 9.92×2.62 | PTFE |
| (كيل29 018-013)1 | 18 | 13.1 | 2.2 | 0.6 | 3 | 12.42×178 | PTFE |
| (كل29 020-012).5 | 20 | 12.5 | 3.2 | 0.6 | 4.5 | 12.37×2.62 | PTFE |
| (كل29 020-015)1 | 20 | 15.1 | 2.2 | 0.6 | 3 | 14.00x178 | PTFE |
| (كيل29 022-014)5 | 22 | 14.5 | 3.2 | 0.6 | 4.5 | 13.95×2.62 | PTFE |
| KL29 022.15-14.65 | 22.15 | 14.65 | 3.2 | 0.6 | 4.5 | 13.95×2.62 | PTFE |
| (كيل29 024-016).5 | 24 | 16.5 | 3.2 | 0.6 | 4.5 | 15.88×2.62 | PTFE |
| KL29 025-014 | 25 | 14 | 4.2 | 1 | 6 | 13.87×353 | PTFE |
| (كل29 025-017)5 | 25 | 17.5 | 3.2 | 0.6 | 4.5 | 17.13×2.62 | PTFE |
| (كل29 025-020)1 | 25 | 20.1 | 2.2 | 0.6 | 3 | 20.35×178 | PTFE |
| (كيل29 028-020)5 | 28 | 20.5 | 3.2 | 0.6 | 4.5 | 20.29×2.62 | PTFE |
| (كيل29 030-022)5 | 30 | 22.5 | 3.2 | 0.6 | 4.5 | 21.89×2.62 | PTFE |
| KL29 032-021 | 32 | 21 | 4.2 | 1 | 6 | 20.22×353 | PTFE |
| (كل29 032-024)5 | 32 | 24.5 | 3.2 | 0.6 | 4.5 | 23.81×2.62 | PTFE |
| KL29 032-027.1 | 32 | 27.1 | 2.2 | 0.6 | 3 | 26.70×1.78 | PTFE |
| KL29 034-026.5 | 34 | 26.5 | 3.2 | 0.6 | 4.5 | 25.07x2.62 | PTFE |
| KL29 035-024 | 35 | 24 | 4.2 | 1 | 6 | 23.40×353 | PTFE |
| (كيل29 035-027)5 | 35 | 27.5 | 3.2 | 0.6 | 4.5 | 26.64×2.62 | PTFE |
| (كيل29 035-030)1 | 35 | 30.1 | 2.2 | 0.6 | 3 | 29.87×178 | PTFE |
| (كيل29 036-028)5 | 36 | 28.5 | 3.2 | 0.6 | 4.5 | 28.25×2.62 | PTFE |
| (كيل29 038-030)5 | 38 | 30.5 | 3.2 | 1 | 4.5 | 29.82×2.62 | PTFE |
| (كيل29 040-024)5 | 40 | 24.5 | 6.3 | 1.3 | 8 | 23.17×533 | PTFE |
| KL29 040-029 | 40 | 29 | 4.2 | 1 | 6 | 28.17×353 | PTFE |
| (كيل29 040-032)5 | 40 | 32.5 | 3.2 | 0.6 | 4.5 | 31.42×2.62 | PTFE |
| KL29 042-031 | 42 | 31 | 4.2 | 1 | 6 | 29.75×353 | PTFE |
| KL29 045-034 | 45 | 34 | 4.2 | 1 | 6 | 32.92×353 | PTFE |
| KL29 048-037 | 48 | 37 | 4.2 | 1 | 6 | 36.1x353 | PTFE |
| KL29 050-034.5/1 | 50 | 34.5 | 6.3 | 1 | 8 | 34.29×533 | PTFE |
| KL29 050-039 | 50 | 39 | 4.2 | 1 | 6 | 37.69×353 | PTFE |
| (كيل29 050-042)5 | 50 | 42.5 | 3.2 | 0.6 | 4.5 | 42.52×2.62 | PTFE |
| (كيل29 050.8-039)8 | 50.8 | 39.8 | 4.2 | 1 | 6 | 39.69×353 | PTFE |
| KL29 052-041 | 52 | 41 | 4.2 | 1 | 6 | 39.69×353 | PTFE |
| KL29 055-044 | 55 | 44 | 4.2 | 1 | 6 | 42.86×353 | PTFE |
| KL29 057-046 | 57 | 46 | 4.2 | 1 | 6 | 44.45×353 | PTFE |
| KL29 058-047 | 58 | 47 | 4.2 | 1 | 6 | 46.04×353 | PTFE |
| (كيل29 060-044)5 | 60 | 44.5 | 6.3 | 1 | 8 | 43.82×533 | PTFE |
| KL29 060-049 | 60 | 49 | 4.2 | 1 | 6 | 47.63×353 | PTFE |
| (كل29 063-047)5 | 63 | 47.5 | 6.3 | 1.3 | 8 | 47.00×533 | PTFE |
| KL29 063-052 | 63 | 52 | 4.2 | 1 | 6 | 50.80×353 | PTFE |
| (كيل29 063-055)5 | 63 | 55.5 | 3.2 | 0.6 | 4.5 | 55.25×2.62 | PTFE |
| KL29 063.5-056 | 63.5 | 56 | 3.2 | 0.6 | 4.5 | 55.25×2.62 | PTFE |
| (كيل29 065-049)5 | 65 | 49.5 | 6.3 | 1.3 | 8 | 47.00×533 | PTFE |
| KL29 065-054 | 65 | 54 | 4.2 | 1 | 6 | 52.39×353 | PTFE |
| KL29 068-057 | 68 | 57 | 4.2 | 1 | 6 | 55.56×353 | PTFE |
| KL29 070-054.5 | 70 | 54.5 | 6.3 | 1.3 | 8 | 53.34×533 | PTFE |
| KL29 070-059 | 70 | 59 | 4.2 | 1 | 6 | 57.15×353 | PTFE |
| (كل29 075-059)5 | 75 | 59.5 | 6.3 | 1.3 | 8 | 56.52×533 | PTFE |
| KL29 075-064 | 75 | 64 | 4.2 | 1 | 6 | 63.09×353 | PTFE |
| KL29 080-059 | 80 | 59 | 8.1 | 1.8 | 10.5 | 58.00×699 | PTFE |
| (كيل29 080-064)5 | 80 | 64.5 | 6.3 | 1.3 | 8 | 62.87×533 | PTFE |
| KL29 080-069 | 80 | 69 | 4.2 | 1 | 6 | 68.26×353 | PTFE |
| KL29 082.5-067 | 82.5 | 67 | 6.3 | 1.3 | 8 | 66.04×533 | PTFE |
| KL29 085-064 | 85 | 64 | 8.1 | 1.8 | 10.5 | 63.00×699 | PTFE |
| (كيل29 085-069)5 | 85 | 69.5 | 6.3 | 1.3 | 8 | 69.22×533 | PTFE |
| KL29 085-074 | 85 | 74 | 4.2 | 1 | 6 | 73.03×353 | PTFE |
| KL29 090-069 | 90 | 69 | 8.1 | 1.8 | 10.5 | 68 × 6.99 | PTFE |
| (كل29 090-074)5 | 90 | 74.5 | 6.3 | 1.3 | 8 | 72.40×533 | PTFE |
| KL29 090-079 | 90 | 79 | 4.2 | 1 | 6 | 78.97×353 | PTFE |
| KL29 095-074 | 95 | 74 | 8.1 | 1.8 | 10.5 | 72.39×699 | PTFE |
| (كل29 095-079)5 | 95 | 79.5 | 6.3 | 1.3 | 8 | 78.74×533 | PTFE |
| KL29 095-084 | 95 | 84 | 4.2 | 1 | 6 | 82.14×353 | PTFE |
| KL29 100-079 | 100 | 79 | 8.1 | 1.8 | 10.5 | 77.00×699 | PTFE |
| كيل29 100-0845 | 100 | 84.5 | 6.3 | 1.3 | 8 | 81.92×533 | PTFE |
| KL29 100-089 | 100 | 89 | 4.2 | 1 | 6 | 88.50×353 | PTFE |
| (كيل29 101.6-086)1 | 101.6 | 86.1 | 6.3 | 1.3 | 8 | 85.09×533 | PTFE |
| (كيل29 105-089)5 | 105 | 89.5 | 6.3 | 1.3 | 8 | 88.27×533 | PTFE |
| KL29 105-094 | 105 | 94 | 4.2 | 1 | 6 | 91.67×353 | PTFE |
| (كل29 108-092)5 | 108 | 92.5 | 6.3 | 1.3 | 8 | 91.44×533 | PTFE |
| KL29 110-089 | 110 | 89 | 8.1 | 1.8 | 10.5 | 88.00×699 | PTFE |
| كيل 29 110-0945 | 110 | 94.5 | 6.3 | 1.3 | 8 | 91.44×533 | PTFE |
| KL29 110-099 | 110 | 99 | 4.2 | 1 | 6 | 98.02×353 | PTFE |
| KL29 115-094 | 115 | 94 | 8.1 | 1.8 | 10.5 | 92.00x7 | PTFE |
| (كل29) 115-0995 | 115 | 99.5 | 6.3 | 1.3 | 8 | 97.80×533 | PTFE |
