مكان المنشأ:
الصين
اسم العلامة التجارية:
Kelong
إصدار الشهادات:
ISO9001 / IRIS
رقم الموديل:
KL35
Contact Us

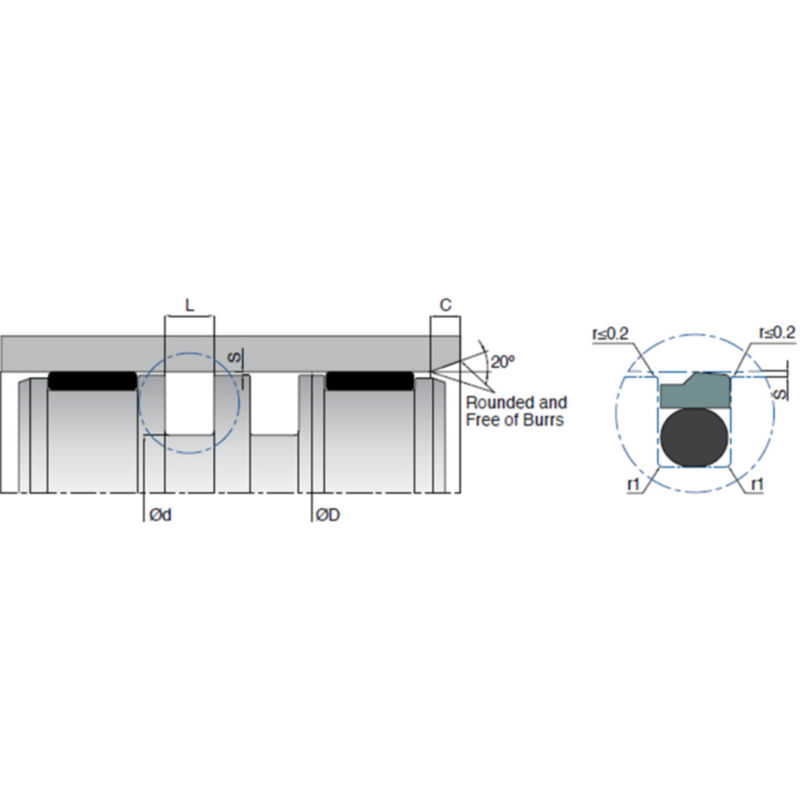

| D (H8) | d (h9) | L (+0.2/-0) | r1 | ج | حلقة O | المواد | |
| KL35-009 | 9 | 4.1 | 2.2 | 0.4 | 3 | 3.68×178 | PTFE |
| KL35-012 | 12 | 7.1 | 2.2 | 0.4 | 3 | 6.75×1.78 | PTFE |
| KL35-016 | 16 | 11.1 | 2.2 | 0.4 | 3 | 10.82×1.78 | PTFE |
| KL35-018 | 18 | 10.7 | 3.2 | 0.6 | 4.5 | 9.92×2.62 | PTFE |
| KL35-022 | 22 | 14.7 | 3.2 | 0.6 | 4.5 | 13.95×2.62 | PTFE |
| KL35-025 | 25 | 17.7 | 3.2 | 0.6 | 4.5 | 17.13×2.62 | PTFE |
| KL35-028 | 28 | 17.3 | 4.2 | 1 | 6 | 15.47×353 | PTFE |
| KL35-030 | 30 | 19.3 | 4.2 | 1 | 6 | 18.64×353 | PTFE |
| KL35-030/1 | 30 | 22.7 | 3.2 | 0.6 | 4.5 | 21.89×2.62 | PTFE |
| KL35-032 | 32 | 21.3 | 4.2 | 1 | 6 | 20.22×353 | PTFE |
| KL35-035 | 35 | 24.3 | 4.2 | 1 | 6 | 23.40×353 | PTFE |
| KL35-040 | 40 | 29.3 | 4.2 | 1 | 6 | 28.17×353 | PTFE |
| KL35-045 | 45 | 34.3 | 4.2 | 1 | 6 | 32.92×353 | PTFE |
| KL35-050 | 50 | 39.3 | 4.2 | 1 | 6 | 37.69×353 | PTFE |
| KL35-050/1 | 50 | 34.9 | 6.3 | 1.3 | 9 | 34.29×533 | PTFE |
| KL35-052 | 52 | 41.3 | 4.2 | 1 | 6 | 40.87×353 | PTFE |
| KL35-055 | 55 | 44.3 | 4.2 | 1 | 6 | 44.04×353 | PTFE |
| KL35-060 | 60 | 44.9 | 6.3 | 1.3 | 9 | 43.82×533 | PTFE |
| KL35-060/1 | 60 | 49.3 | 4.2 | 1 | 6 | 49.21×353 | PTFE |
| KL35-063 | 63 | 47.9 | 6.3 | 1.3 | 9 | 46.99×533 | PTFE |
| KL35-063/1 | 63 | 52.3 | 4.2 | 1.3 | 6 | 52.39×353 | PTFE |
| KL35-065 | 65 | 49.9 | 6.3 | 1.3 | 9 | 46.99×533 | PTFE |
| KL35-070 | 70 | 59.3 | 4.2 | 1 | 6 | 57.15×353 | PTFE |
| KL35-070/1 | 70 | 54.9 | 6.3 | 1.3 | 9 | 53.34×533 | PTFE |
| KL35-075 | 75 | 59.9 | 6.3 | 1.3 | 9 | 56.52×533 | PTFE |
| KL35-080 | 80 | 64.9 | 6.3 | 1.3 | 9 | 62.87×533 | PTFE |
| KL35-085 | 85 | 69.9 | 6.3 | 1.3 | 9 | 69.22×533 | PTFE |
| KL35-090 | 90 | 74.9 | 6.3 | 1.3 | 9 | 72.40×533 | PTFE |
| KL35-090/1 | 90 | 69.5 | 8.1 | 1.8 | 12 | 68.00×699 | PTFE |
| KL35-095 | 95 | 79.9 | 6.3 | 1.3 | 9 | 78.74×533 | PTFE |
| KL35-100 | 100 | 84.9 | 6.3 | 1.3 | 9 | 81.92×533 | PTFE |
| KL35-110 | 110 | 94.9 | 6.3 | 1.3 | 9 | 91.44×533 | PTFE |
| KL35-115 | 115 | 99.9 | 6.3 | 1.3 | 9 | 97.80×533 | PTFE |
| KL35-120 | 120 | 104.9 | 6.3 | 1.3 | 9 | 104.14×533 | PTFE |
| KL35-125 | 125 | 109.9 | 6.3 | 1.3 | 9 | 107.32×533 | PTFE |
| KL35-130 | 130 | 109.5 | 8.1 | 1.8 | 12 | 108.00x700 | PTFE |
| KL35-130/1 | 130 | 114.9 | 6.3 | 1.3 | 9 | 113.67×533 | PTFE |
| KL35-135 | 135 | 114.5 | 8.1 | 1.8 | 12 | 113.67×699 | PTFE |
| KL35-135/1 | 135 | 119.9 | 6.3 | 1.3 | 9 | 117.48×533 | PTFE |
| KL35-140 | 140 | 124.9 | 6.3 | 1.3 | 9 | 123.80×533 | PTFE |
| KL35-150 | 150 | 134.9 | 6.3 | 1.3 | 9 | 133.35×533 | PTFE |
| KL35-160 | 160 | 144.9 | 6.3 | 1.3 | 9 | 142.24×533 | PTFE |
| KL35-160/1 | 160 | 139.5 | 8.1 | 1.8 | 12 | 135.90×699 | PTFE |
| KL35-165 | 165 | 149.9 | 6.3 | 1.3 | 9 | 146.05×533 | PTFE |
| KL35-170 | 170 | 154.9 | 6.3 | 1.3 | 9 | 151.77×533 | PTFE |
| KL35-175 | 175 | 159.9 | 6.3 | 1.3 | 9 | 158.12×533 | PTFE |
| KL35-180 | 180 | 164.9 | 6.3 | 1.3 | 9 | 164.47×533 | PTFE |
| KL35-180/1 | 180 | 159.5 | 8.1 | 1.8 | 12 | 158.12×699 | PTFE |
| KL35-190 | 190 | 174.9 | 6.3 | 1.3 | 9 | 170.82×533 | PTFE |
| KL35-200 | 200 | 179.5 | 8.1 | 1.8 | 12 | 177.17×699 | PTFE |
| KL35-205 | 205 | 184.5 | 8.1 | 1.8 | 12 | 183.52×699 | PTFE |
| KL35-210 | 210 | 189.5 | 8.1 | 1.8 | 12 | 187.30×699 | PTFE |
| KL35-215 | 215 | 194.5 | 8.1 | 1.8 | 12 | 193.70×699 | PTFE |
| KL35-220 | 220 | 199.5 | 8.1 | 1.8 | 12 | 196.22×699 | PTFE |
| KL35-225 | 225 | 204.5 | 8.1 | 1.8 | 12 | 202.57×699 | PTFE |
| KL35-230 | 230 | 209.5 | 8.1 | 1.8 | 12 | 208.92×699 | PTFE |
| KL35-240 | 240 | 219.5 | 8.1 | 1.8 | 12 | 215.27×699 | PTFE |
| KL35-250 | 250 | 229.5 | 8.1 | 1.8 | 12 | 227.97×699 | PTFE |
| KL35-260 | 260 | 236 | 8.1 | 1.8 | 14 | 234.32×699 | PTFE |
| KL35-270 | 270 | 246 | 8.1 | 1.8 | 14 | 240.67×699 | PTFE |
| KL35-280 | 280 | 256 | 8.1 | 1.8 | 14 | 253.57×699 | PTFE |
| KL35-290 | 290 | 266 | 8.1 | 1.8 | 14 | 259.70×699 | PTFE |
| KL35-300 | 300 | 276 | 8.1 | 1.8 | 14 | 272.40×699 | PTFE |
| KL35-320 | 320 | 296 | 8.1 | 1.8 | 14 | 291.47×699 | PTFE |
| KL35-330 | 330 | 306 | 8.1 | 1.8 | 14 | 304.17×699 | PTFE |
| KL35-340 | 340 | 316 | 8.1 | 1.8 | 14 | 310.50×699 | PTFE |
| KL35-350 | 350 | 326 | 8.1 | 1.8 | 14 | 316.87×699 | PTFE |
| KL35-360 | 360 | 336 | 8.1 | 1.8 | 14 | 329.57×699 | PTFE |
| KL35-370 | 370 | 346 | 8.1 | 1.8 | 14 | 342.27×699 | PTFE |
| KL35-380 | 380 | 356 | 8.1 | 1.8 | 14 | 354.90×699 | PTFE |
| KL35-400 | 400 | 376 | 8.1 | 1.8 | 14 | 367.67×699 | PTFE |
| KL35-420 | 420 | 396 | 8.1 | 1.8 | 14 | 393.07×699 | PTFE |
| KL35-450 | 450 | 426 | 8.1 | 1.8 | 14 | 417.96×699 | PTFE |
| KL35-460 | 460 | 436 | 8.1 | 1.8 | 14 | 456.06×699 | PTFE |
| KL35-480 | 480 | 456 | 8.1 | 1.8 | 14 | 456.06×699 | PTFE |
| KL35-500 | 500 | 476 | 8.1 | 1.8 | 14 | 468.76×699 | PTFE |
| KL35-520 | 520 | 496 | 8.1 | 1.8 | 14 | 494.16×699 | PTFE |
