مكان المنشأ:
الصين
اسم العلامة التجارية:
KELONG
إصدار الشهادات:
ISO9001 / IRIS
رقم الموديل:
KL105
Contact Us

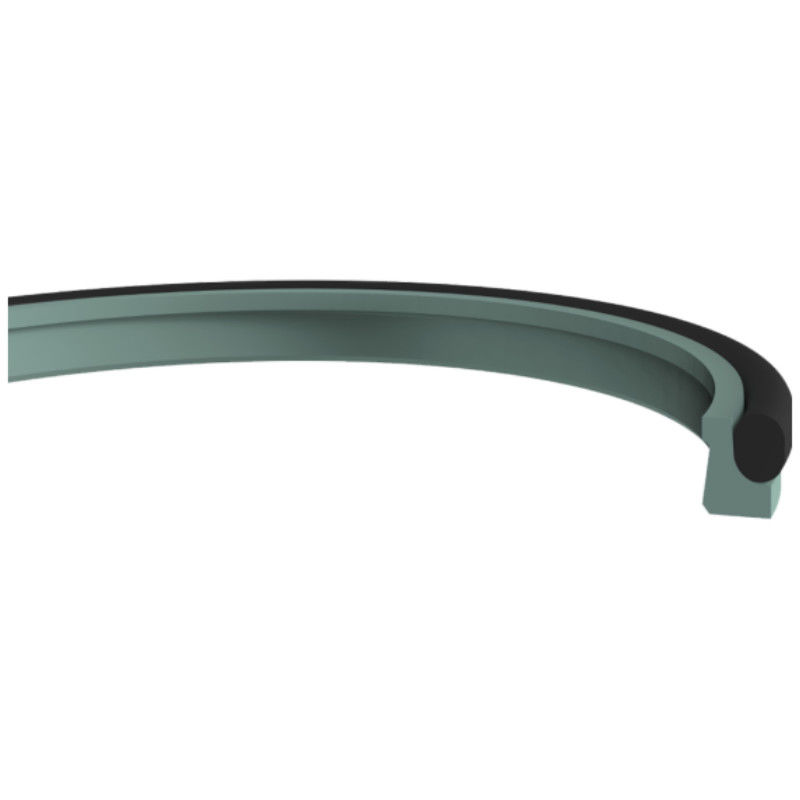

KL105 هو مسح PTFE مع O-ring Energizer استخدم تصميم خندق بسيط لديه مجموعة واسعة من الأبعاد اختيار
KL105هو مسح PTFE مع حلقة O من المحفز.

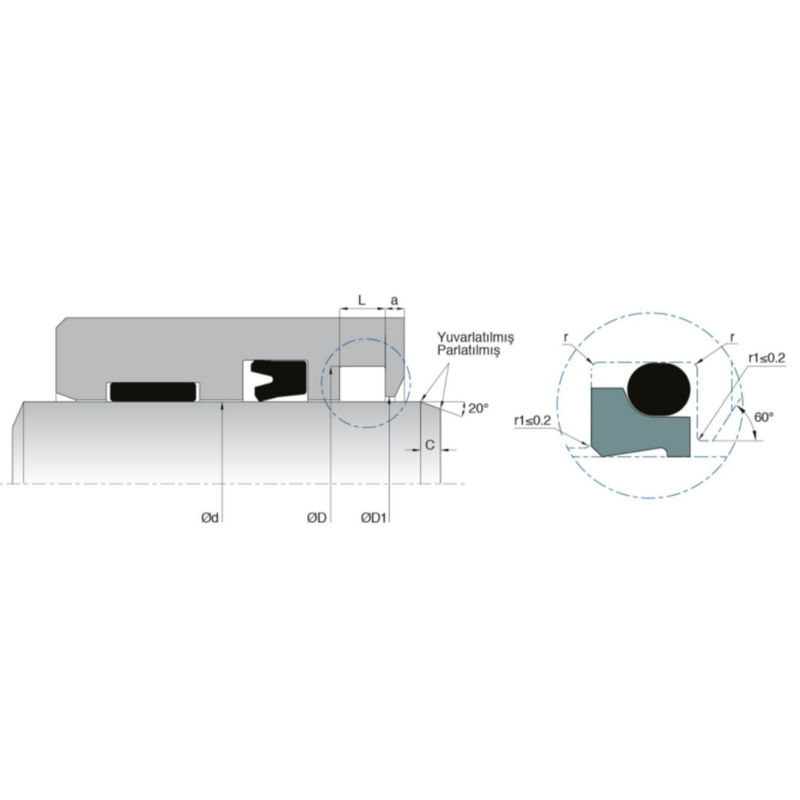

| d (f8) | D (H9) | D1 (H11) | L (+0.2/-0) | آمين | ر | ج | المواد | |
| KL105-010 | 10 | 14.8 | 11.5 | 3.7 | 2 | 0.4 | 2 | PTFE |
| KL105-012 | 12 | 18.8 | 13.5 | 5 | 2 | 0.8 | 2.5 | PTFE |
| KL105-015 | 15 | 21.8 | 16.5 | 5 | 2 | 0.8 | 2.5 | PTFE |
| KL105-016 | 16 | 22.8 | 17.5 | 5 | 2 | 0.8 | 2.5 | PTFE |
| KL105-018 | 18 | 22.8 | 19.5 | 3.7 | 2 | 0.4 | 2 | PTFE |
| KL105-022 | 22 | 28.8 | 23.5 | 5 | 2 | 0.8 | 2.5 | PTFE |
| KL105-022/1 | 22 | 26.8 | 23.5 | 3.7 | 2 | 0.4 | 2 | PTFE |
| KL105-025 | 25 | 31.8 | 26.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-028 | 28 | 34.8 | 29.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-030 | 30 | 36.8 | 31.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-032 | 32 | 38.8 | 33.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-035 | 35 | 41.8 | 36.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-036 | 36 | 42.8 | 37.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-040 | 40 | 46.8 | 41.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-042 | 42 | 48.8 | 43.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-045 | 45 | 51.8 | 46.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-050 | 50 | 56.8 | 51.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-055 | 55 | 61.8 | 56.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-056 | 56 | 62.8 | 57.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-060 | 60 | 66.8 | 61.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-063 | 63 | 69.8 | 64.5 | 5 | 2 | 0.8 | 3 | PTFE |
| KL105-070 | 70 | 78.8 | 71.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-080 | 80 | 88.8 | 81.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-085 | 85 | 93.8 | 86.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-090 | 90 | 98.8 | 91.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-095 | 95 | 103.8 | 96.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-100 | 100 | 108.8 | 101.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-105 | 105 | 113.8 | 106.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-110 | 110 | 118.8 | 111.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-115 | 115 | 123.8 | 116.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-120 | 120 | 128.8 | 121.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-135 | 135 | 143.8 | 136.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-137 | 137 | 145.8 | 138.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-140 | 140 | 148.8 | 141.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-150 | 150 | 158.8 | 151.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-160 | 160 | 168.8 | 161.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-170 | 170 | 178.8 | 171.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-180 | 180 | 188.8 | 181.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-200 | 200 | 208.8 | 201.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-210 | 210 | 218.8 | 211.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-220 | 220 | 228.8 | 221.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-250 | 250 | 258.8 | 251.5 | 6 | 3 | 1 | 4 | PTFE |
| KL105-300 | 300 | 312.2 | 302 | 8.4 | 4 | 1.5 | 6 | PTFE |
| KL105-360 | 360 | 372.2 | 362 | 8.4 | 4 | 1.5 | 6 | PTFE |
| KL105-440 | 440 | 456 | 442 | 11 | 4 | 1.5 | 6 | PTFE |
